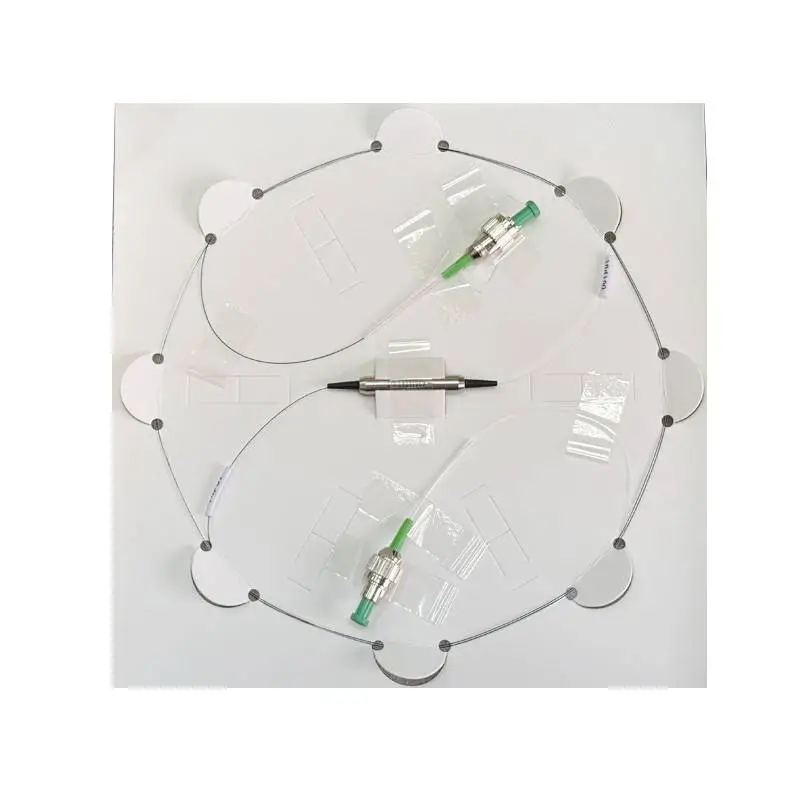

隔离器 1310,1450,1480,1550nm

👁️ 5 浏览
它具有宽工作波长、高隔离度&低插入损耗&低 PDL、高稳定性和可靠性等特点，常用于 EDFA&Testing 仪器、发射机、波分复用器&DWDM 系统等
产品参数

产品详情

技术参数

Type ParameterSingle stageDual stage
PAPA
Operating wavelength (nm)1310,1450,1480,1550
Bandwidth(nm)±15
Peak Isolation (dB)42402856
Isolation @23℃(dB)≥28≥26≥46≥45
Typ. Insertion Loss0.350.40.40.5
Insertion Loss @-5~+70℃(dB)≤0.50≤0.70≤0.55≤0.90
PDL @23℃(dB)≤0.05≤0.10≤0.10≤0.15
PMD (ps)≤0.2≤0.25≤0.05≤0.07
Return loss (dB)≥60/55
Power handling (mW)≤500
Fiber TypeSMF-28e
Operating temperature(℃)-5~+70
Storage temperature(℃)-40~+80
Dimensions (mm)5.5*35&4.0*≤28
▲ For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.

封装尺寸

订单信息
YG-PIISWavelengthTypeGrade0PackagePigtail TypeLengthConnector
 1310=1310nm
1450=1450nm
1480=1480nm
1580=1580nm		S=Single Stage
D=Dual Stage		P=PGrade
A=AGrade		 1=P1(5.5*35mm)
2=P2(5.5*30mm)
3=P3(90*20*9.5)
4=P4(4.0*≤28mmGlass tube )		1=250um barefiber
2=900um loose tube
3=3mm loos etube
4=2mm loose tube
S=Specify		H=0.5m
8=0.8m
1=1.0m
5=1.5m
2=2.0m
3=3.0m
4=4.0m
A=2.5m
B=5.0m
S=Specify		0=NoncI
1=FC/UPC
2=FC/APC
3=SC/APC
4=SC/UPC
5=NU
6=LC/UPC
7=LC/APC
S=Specify
