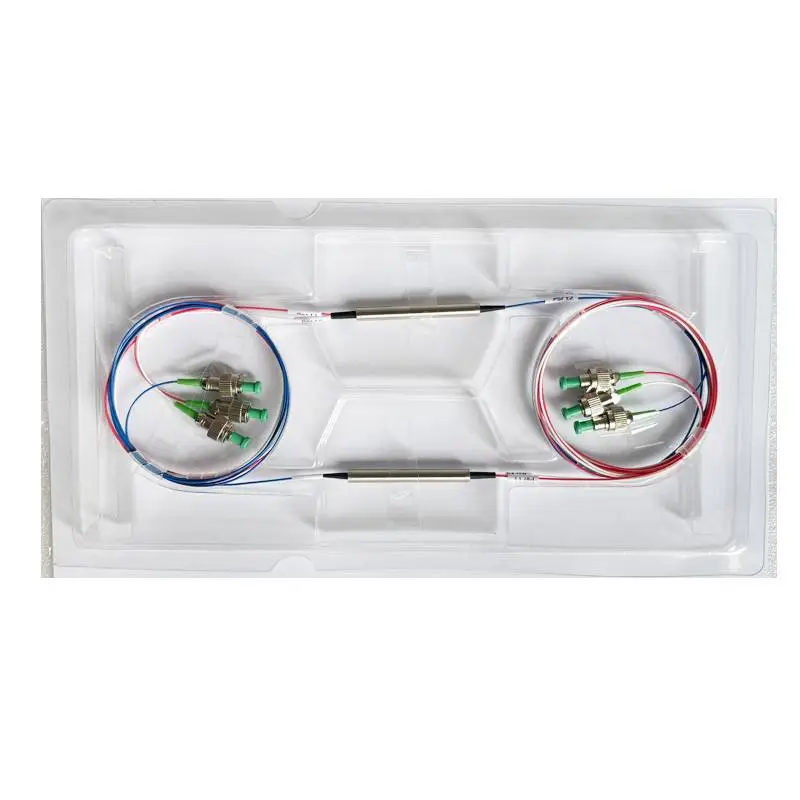

| Type Parameter | 3 Port | 4 Port | |||
|---|---|---|---|---|---|
| Operating wavelength (nm) | 1310，1450 1480，1550 1580，1610 | 1550 | 1310，1450 1480，1550 1580，1610 | 1550 | |
| Bandwidth (nm) | 土30 | 1520-1620(C+L) | 土30 | 1520-1620(C+L) | |
| Typ. Peak Isolation | 50 | 50 | 50 | 50 | |
| Isolation 23℃ (dB) | ≥40 | ≥35 | ≥40 | ≥35 | |
| Insertion Loss (dB) | ≤0.8 | ≤1.1 | ≤1 | ≤1.2 | |
| PDL(dB) | ≤0.15 | ≤0.2 | |||
| Return loss (dB) | ≥50 | ||||
| PMD (ps) | ≤0.1 | ||||
| Directivity | ≥50 | ||||
| Power handling (mW) | ≤500 | ||||
| Fiber Type | SMF-28e | ||||
| Operating temperature (℃) | 0～+70 | ||||
| Storage temperature (℃) | -40～+85 | ||||
| Package Dimensions(mm) | For bare fiber or 900um loose tube | φ5.5xL38 or φ5.5xL50 | φ5.5xL60 | ||
| For 3mm or 2mmcable | L90*W20*H9.5(P2) | ||||
▲ Above specifications are for devices without the connectors.
▲ For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower
▲ The transmission optical path of 3Ports is different from 4Ports: 3Ports: 1 -> 2, 2 -> 3:4Ports: 1 -> 2, 2 -> 3, 3 -> 4
| YG- | FCIR | Wavelength | Type | Grade | 0 | Package | Pigtail Type | Length | Connector |
|---|---|---|---|---|---|---|---|---|---|
| FCIR | 1310=1310nm 1450=1450nm 1480=1480nm 1550=1550nm 1580=1580nm 1610-1610nm C100=1520～1620nm | 3=3Port 4=4Port | PeP Grade | 0 | 1=P1(5.5*50mm) 2=P2(90*20*9 5mm ) 3=P3(4.7*43:1mm Glass tube ) 4=P4(4.9*43+1mmGlass tube 5=P5(5.5*38mm) 6=P6(5.5*64mm) 7=P7(4.9*33:1mmGlass tube) | 1=250um bare fiber 2=900um loose tube 3= 3mm loose tube 4=2mm loose tube S=Specify | H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m S=Specify | 0=NoncI 1=FC/UPC 2=FC/APC 3=SC/APC 4=SC/UPC 5=NU 6=LC/UPC 7=LC/APC S=Specify |
